900001.068
Technical data
- Measured variable Temperature
- Sensor type Pt100 3L
- Measuring range -35...105°C
- Cable length 20.00
- Tube dimensions 6x50 mm
Product description

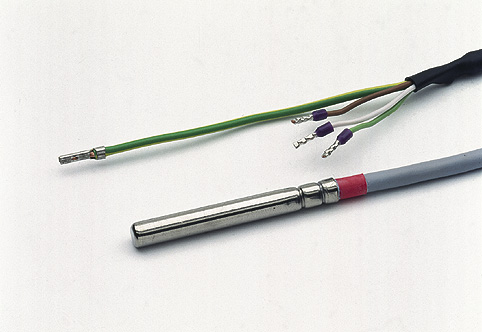

The temperature sensor Pt100 is soldered to the line and electrically isolated installed in the case. For strain relief reasons, the case is waterproof drummed with the line. The line is shielded and the shielding is lead outside. The sensor has V4A case material (food genuine). For the assembly of the sensors with V4A case, there are several screw connections available in V4A or brass.

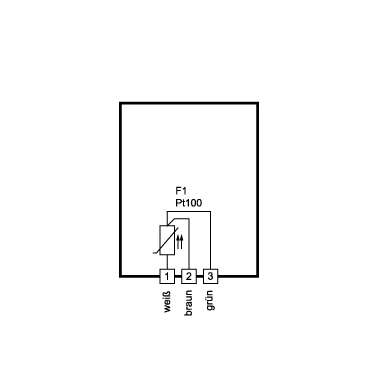

Wiring diagram

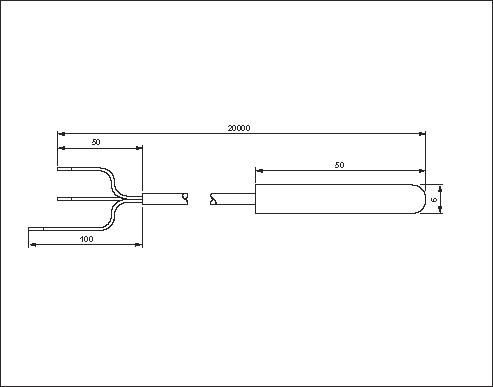

Dimensional drawing
