Indicatoren en meetpuntschakelaars 900193.002

Technische gegevens

  • Behuizing nee
  • Spanningsvoorziening ST58 Front: 62x28mm
  • Switching inputs 12V AC/DC
  • Aantal uitgangen Geen
  • Sensortype Geen
  • ST-Bus beschikbaar ja
  • Software nee

Productbeschrijving

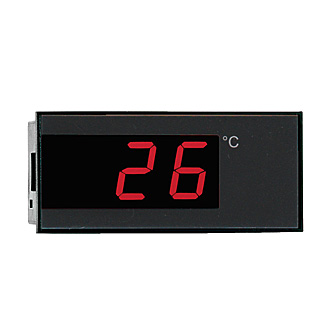

The ST58-03.30 is equipped with a field bus interface RS485, in order to indicate the temperature of a remote temperature controller as satellite display. It has a 2-digit LED display and a voltage supply of 12V.
Each second, the satellite demands the current temperature of the temperature controller via the communication interface and indicates the ladder in integrals.

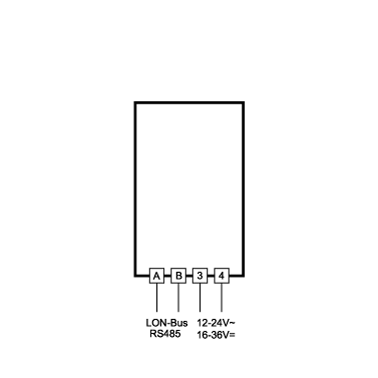

Aansluitschema

Maattekening

Data sheet             Montage instructie
