Thermostaatregelaar 900144.001

Technische gegevens

  • Behuizing nee
  • Spanningsvoorziening ST58 Front: 62x28mm
  • Switching inputs 230V AC
  • Aantal uitgangen Geen
  • Sensortype 1
  • ST-Bus beschikbaar nee
  • Software nee

Productbeschrijving

The controller ST58-GB1TA.10 was developed for simple thermostatic applications. The unit disposes of a connection for resistance sensor PTC or Pt100. It is supplied with a voltage of 230V AC and has an exit relay with an Ohm maximum electric load of 16A. Inductive loads can be connected with up to max. 2,2A permanent current.

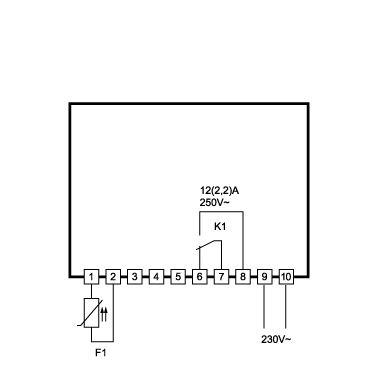

Aansluitschema

Maattekening

Data sheet             Montage instructie
